Products | Lifeline® MC Cable

O U R P R O D U C T S

Our heat resistant cables are designed to maintain operation of critical fire alarm systems and emergency circuits against attack by fire and water.

MC POWER CABLE SINGLE CONDUCTOR

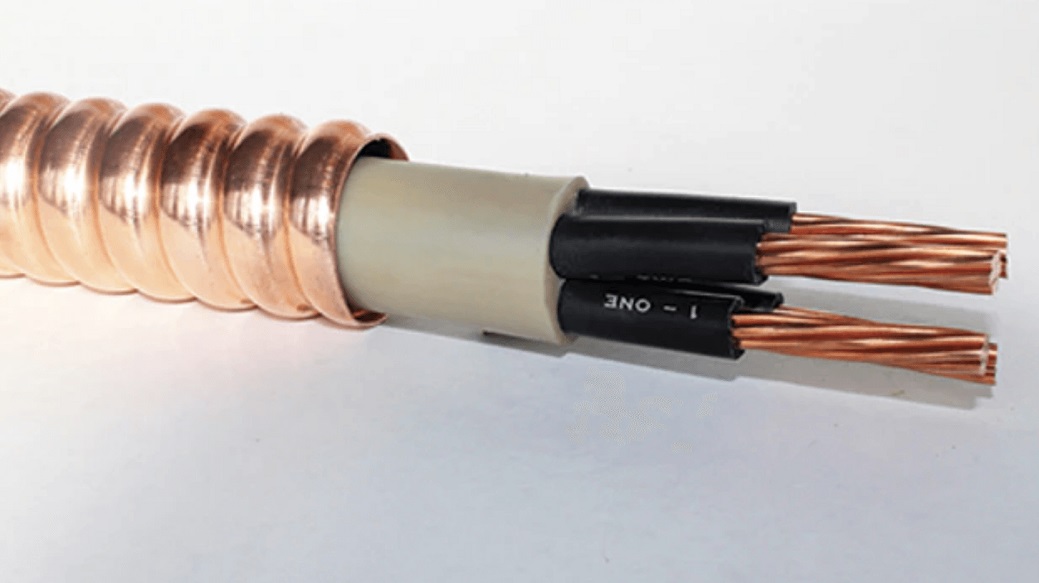

MC POWER CABLE

RHW-2 POWER CABLE - EMT

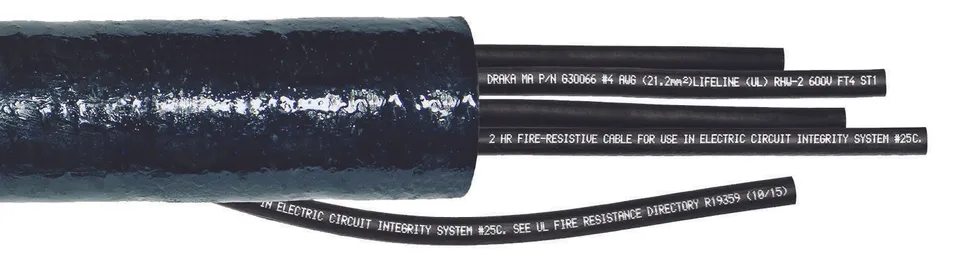

RHW-2 POOWER CABLE - XW BreathSaver

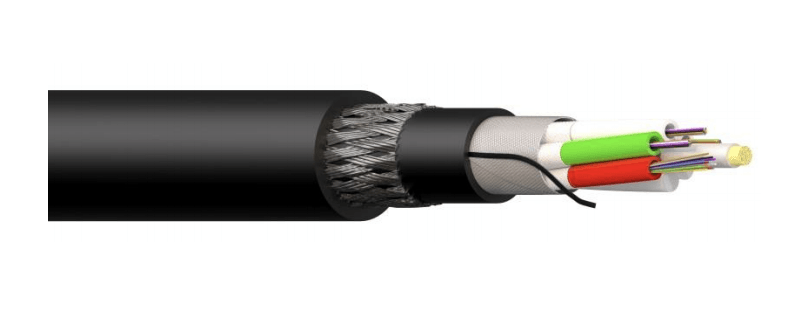

QFCI FiBER CABLE

Ceramifiable Silicone Technology

The hardening of a normal rubber insulation material into an insulating glasslike structure which protects the conductors against attack by fire and wire which may be present during fire fighting efforts.

Primary Applications

Fire Pumps

A part of a fire sprinkler system's water supply and powered by electric, diesel or steam.

Emergency Lighting Systems

A battery-backed lighting device that switches on automatically when a building experiences a power outage.

Emergency Ventilation Systems

Affect the direction and velocity of the airflow and the air quantity in order to secure escape routes during fire emergency.

Back-Up Power Systems

Is an independent source of electrical power that supports important electrical systems on loss of normal power supply.

Other applications that Lifeline MC Cables can be used: Tall Buildings, Emergency Feeder Cables, Stairwell Pressurization and Elevators / OEO.

Commercial Applications

Health care facilities
High-rise/Commercial/Public Buildings
Educational Institutions/Dormitories
Auditoriums/Stadiums
Museums

Infrastructure / Industrial Applications

Transit Tunnels
Transit Stations
Roadway Tunnels
OEM (Equipment and Pre-Fab)
Petrochemical - next generation Lifeline MC

UL 2196 Standard & Test Methods

Fire Endurance

ASTM E119 (Standard Time vs. Temperature Cure) 2 Hours at 1010 Degrees Celsius

Hose Stream Test

The cable is not energized during the hose stream test. The cable goes through a Mechanical shock simulation. 2 1/2" hose stream test for feeder or branch circuit cables normally installed in conduit or metal sheaths.

Energized Test

After the test assembly has dried, each conductor is to be energized to the utilization voltage of the cable for a minimum of a 5 minute period.

Here's a video explaining how Lifeline® MC Cable's are tested.
